9.8 x 9.8 ft Motorized Aluminum Louvered Pergola with LED Lights
Designed for Shelter
MOTORIZED LOUVERS · INTEGRATED LED LIGHTING · RAIN SENSOR
Your outdoor space. Open to possibility.
Make room for slow mornings, long lunches and evenings outside. The Ubloc electric aluminum louvered pergola combines a freestanding frame with an adjustable motorized roof, integrated lighting in the frame and louvers, and a rain sensor.
Actual overall size: approximately 9 ft 10.1 in × 9 ft 10.1 in × 7 ft 10.5 in high (3,000 × 3,000 × 2,400 mm). This is the supplied 3 m model; it is not an exact 10 ft × 10 ft structure.
Included with every package: aluminum frame, four posts, double-layer motorized louvers, frame and louver LEDs, motor, rain sensor and control box. Screens and glass doors are included only when selected in your package.

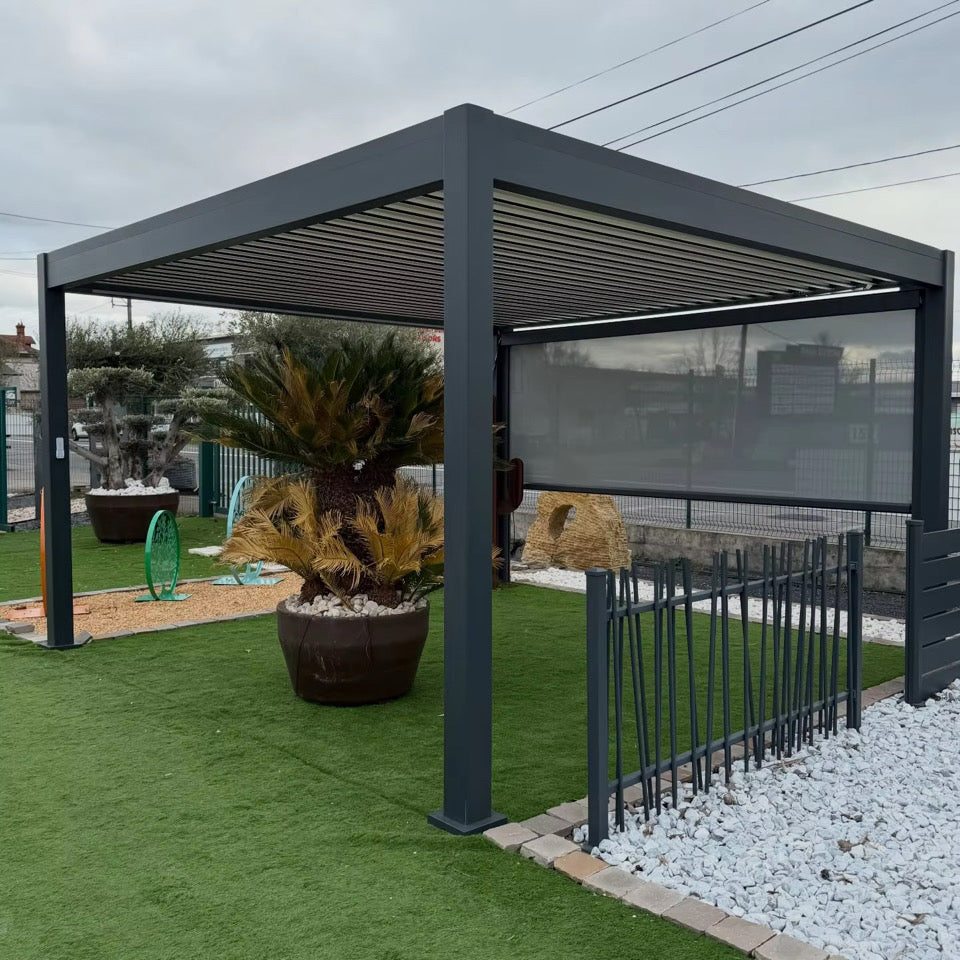

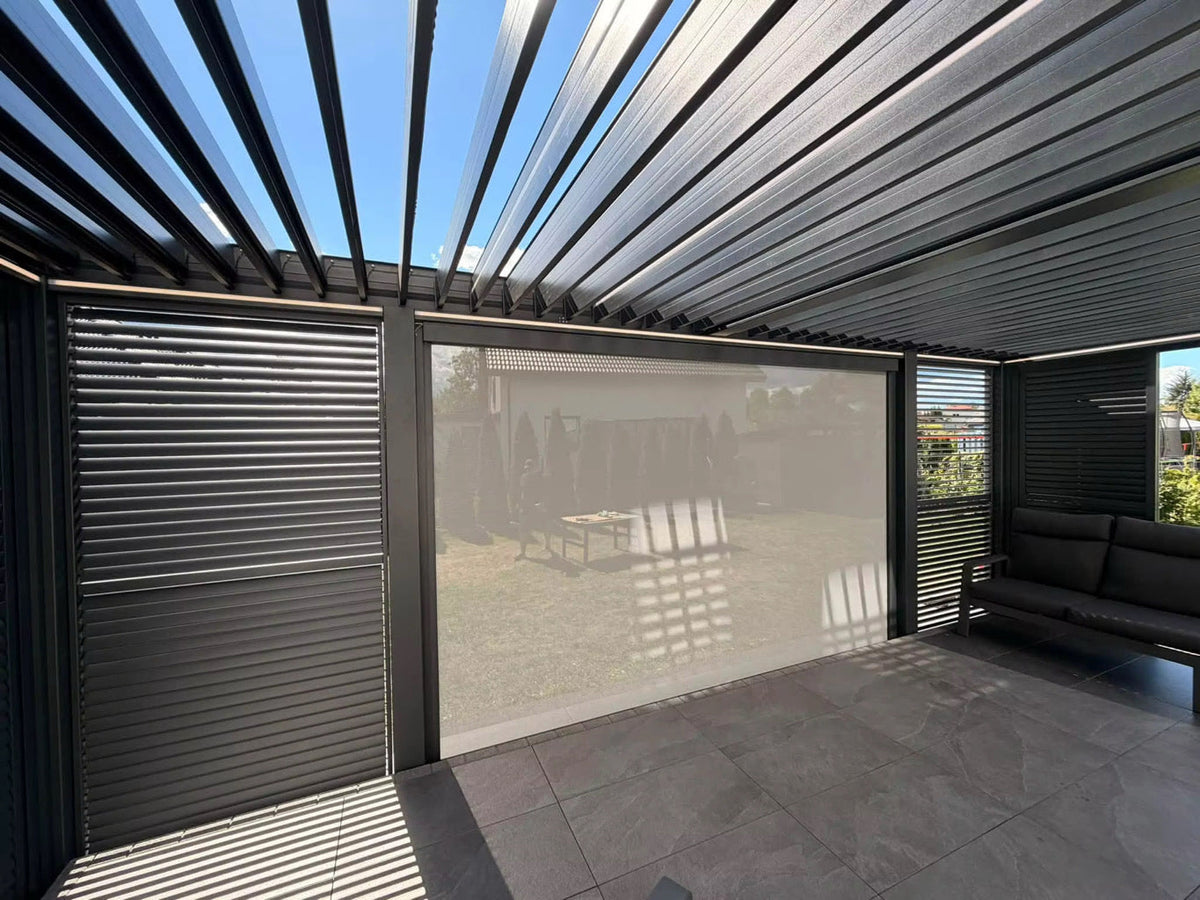

Photo guide: images show optional screens, glass doors and furnished settings. Furniture, landscaping, fencing, fixed slat walls and additional enclosed sides are not included.
Sunlight when you want it. Shade when you need it.

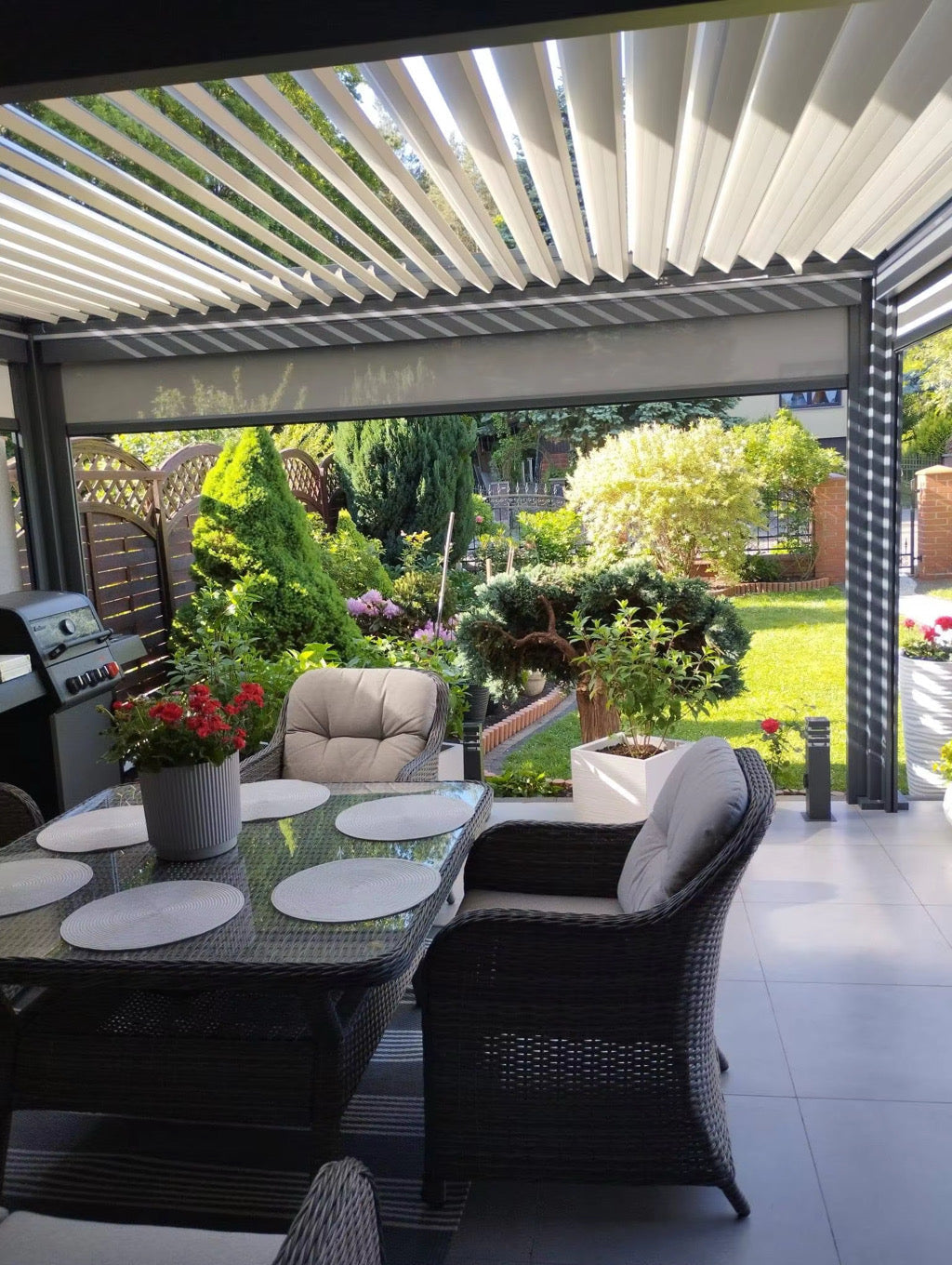

Adjust the electric louvers to change the light and openness above your patio dining or lounge area. The double-layer roof creates a clean architectural finish, with the motor and control box included.
Lighting built into the design
LED lighting is integrated into both the frame and louvers for evenings outdoors. A rain sensor is also supplied; request the operating instructions and sensor settings when planning installation.
Choose your package
- Pergola only: the complete base pergola with motorized roof, LEDs, rain sensor and control box.

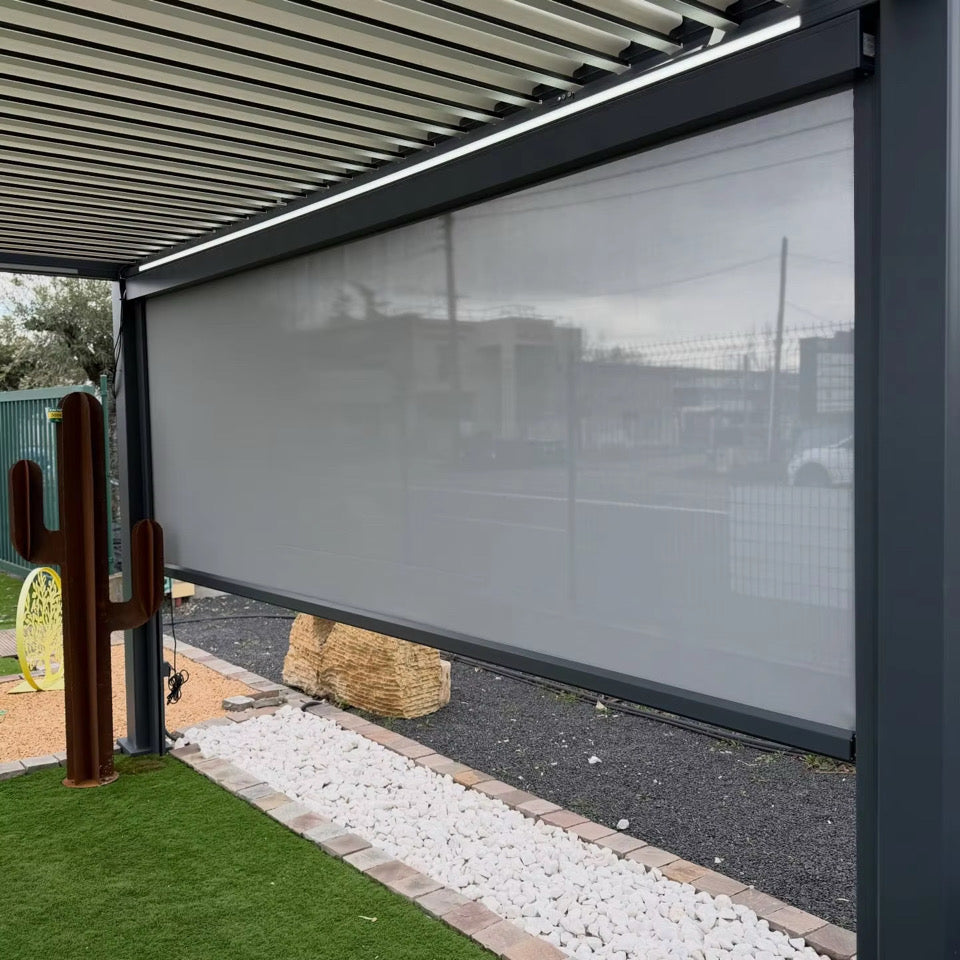

- Pergola + 1 electric privacy screen: base pergola plus one motorized gray fiberglass screen with an aluminum frame, for one side.

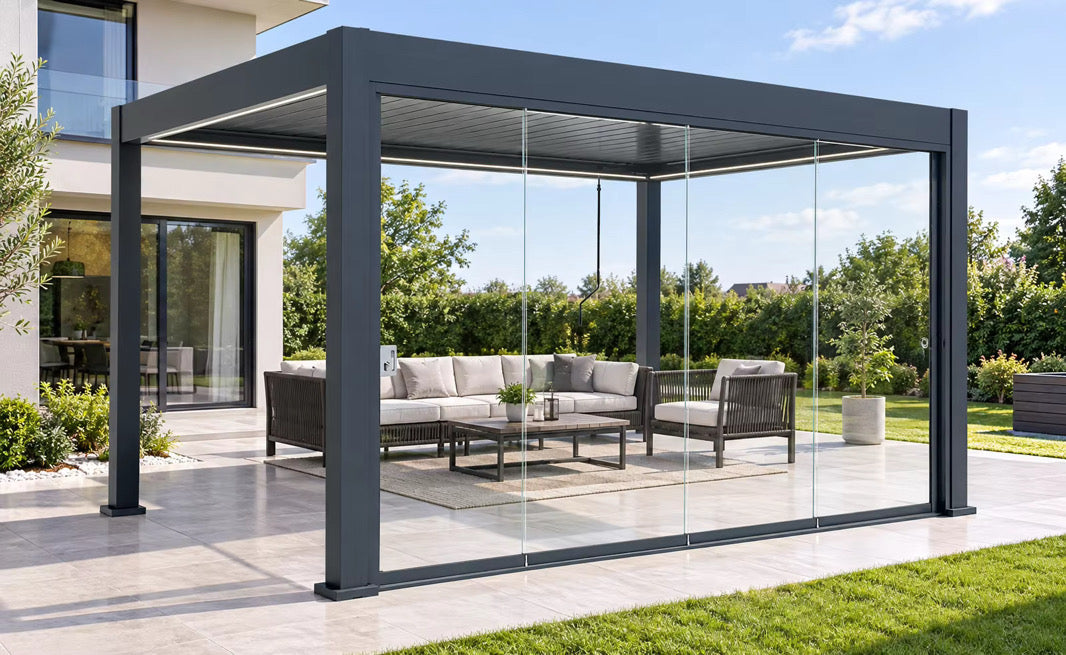

- Pergola + 1 sliding glass door set: base pergola plus one frameless sliding door set with 0.394 in (10 mm) tempered glass and matching gray frame/track finish, for one side.
- Pergola + 1 screen + 1 glass door set: base pergola plus one screen and one glass door set for separate sides.
Each accessory is supplier-listed at approximately 9 ft 10.1 in wide × 7 ft 10.5 in high (3,000 × 2,400 mm). Confirm finished opening dimensions and installation clearances before preparing the site. These accessories are specified for this Ubloc pergola; compatibility with other brands is not claimed.
Specifications
| Structure | Freestanding aluminum; four posts |
|---|---|
| Overall length × width × height | Approx. 118.11 × 118.11 × 94.49 in (3,000 × 3,000 × 2,400 mm) |
| Footprint | Approx. 96.9 sq ft (9 m²) |
| Post section | 4.724 × 4.724 in; 0.055 in wall thickness (120 × 120 × 1.4 mm) |

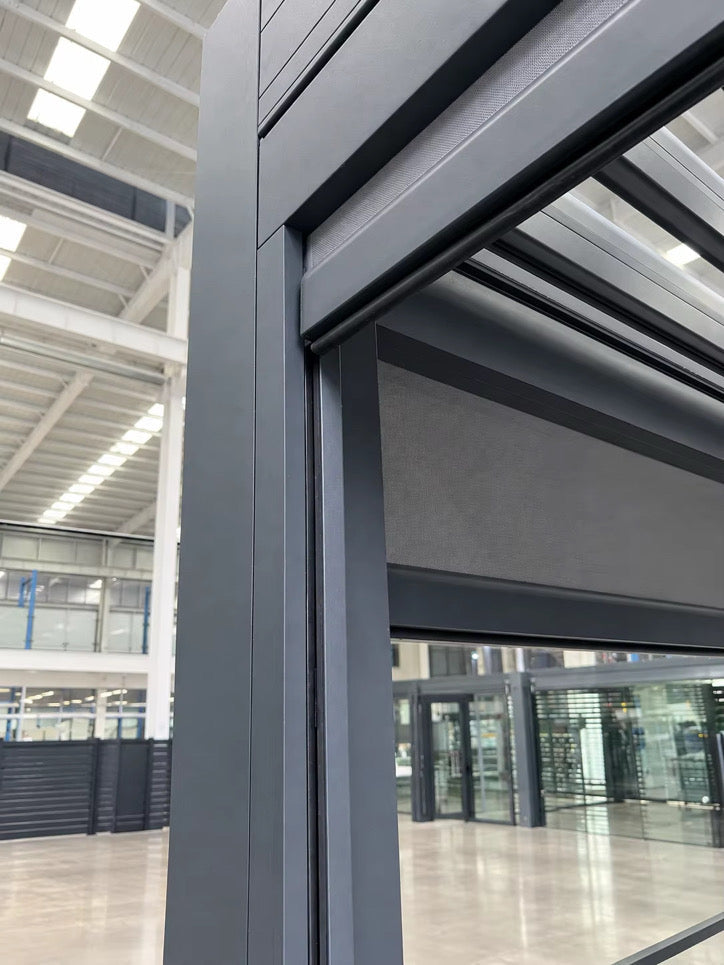

| Frame section | 8.268 × 3.543 in; 0.055 in wall thickness (210 × 90 × 1.4 mm) |
| Louver section | 6.693 × 1.575 in; 0.051 in wall thickness (170 × 40 × 1.3 mm); double-layer design |
| Finish | Gray powder-coated finish |
| Lighting | LEDs integrated into frame and louvers |

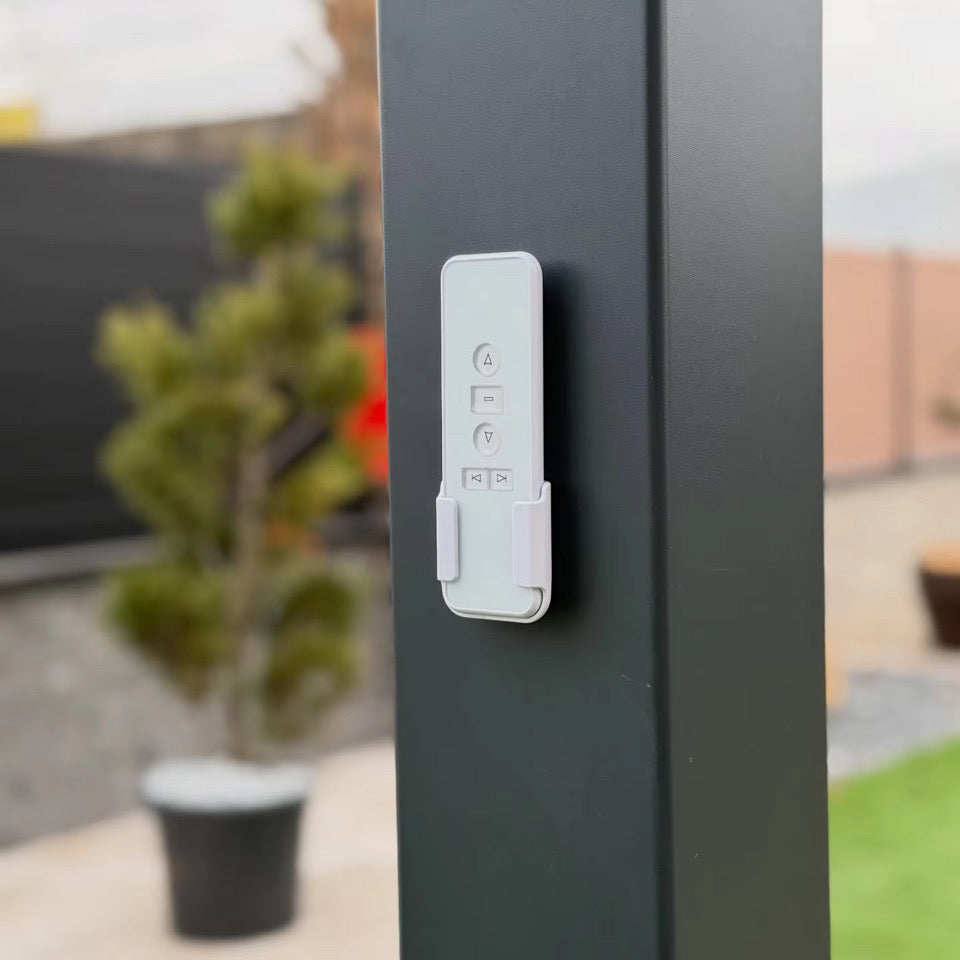

| Electrical components | Motor, rain sensor and control box |
| Optional privacy screen | Gray fiberglass screen with aluminum frame |
| Optional sliding glass doors | 0.394 in (10 mm) tempered glass; gray frame/track finish; one set per selected upgrade |
US measurements are rounded conversions of the supplier's metric specifications. Use the installation drawings to determine footing positions, anchoring and required clearances.
Plan your space before ordering
Contact Ubloc with your ZIP code, a photo of your proposed location and your preferred screen or glass layout to confirm delivery availability, freight charges, lead time and unloading arrangements.
Installation, electrical connection, foundations and anchoring must be confirmed separately. Before ordering, request the installation manual, electrical voltage/frequency and US compatibility details, and applicable engineering information for your location. Wind and snow ratings, US electrical certification and warranty terms have not yet been confirmed for this model.
